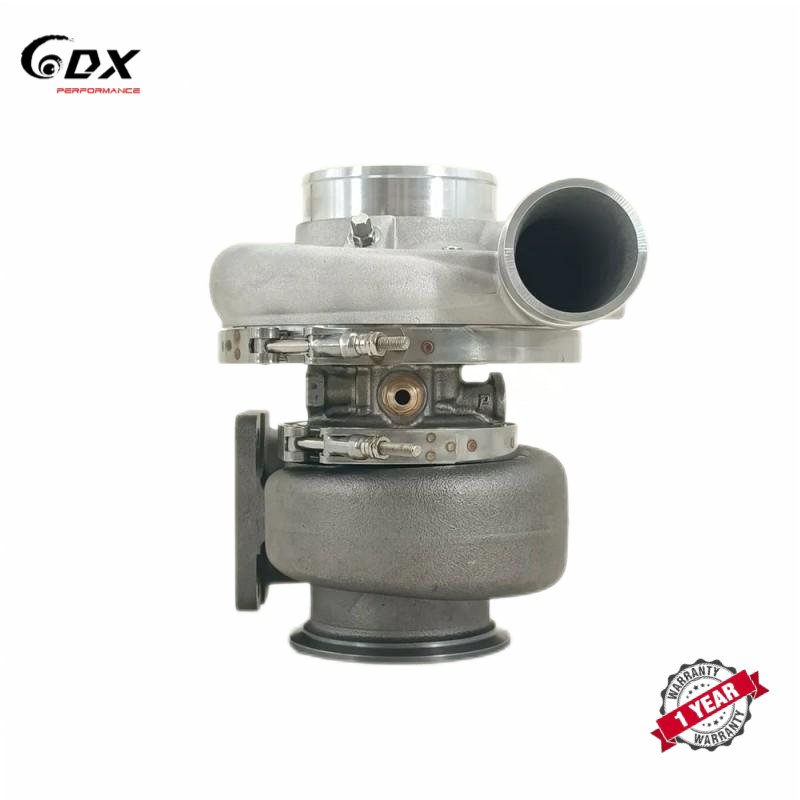

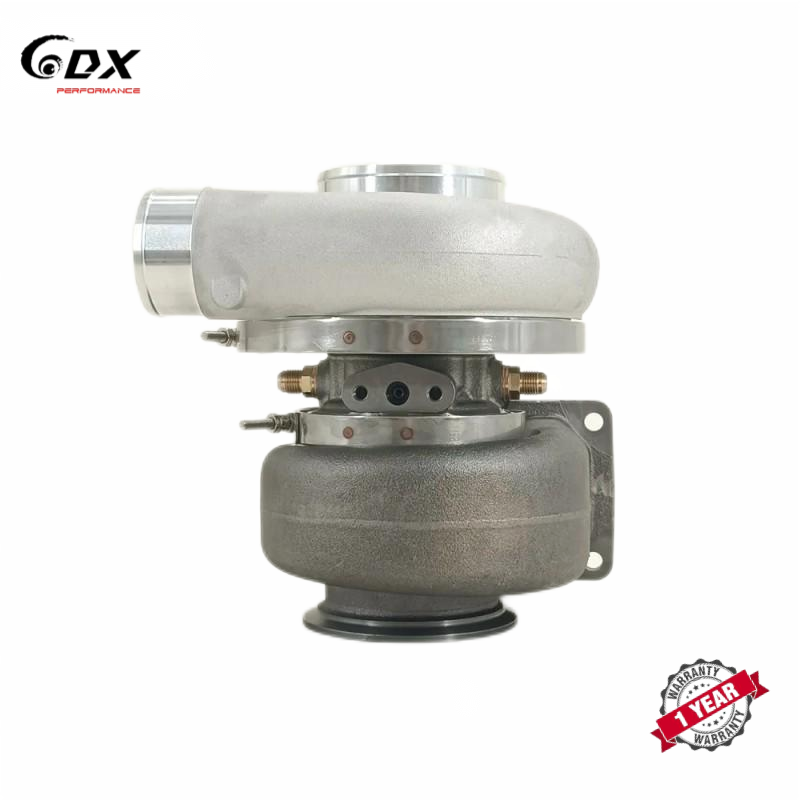

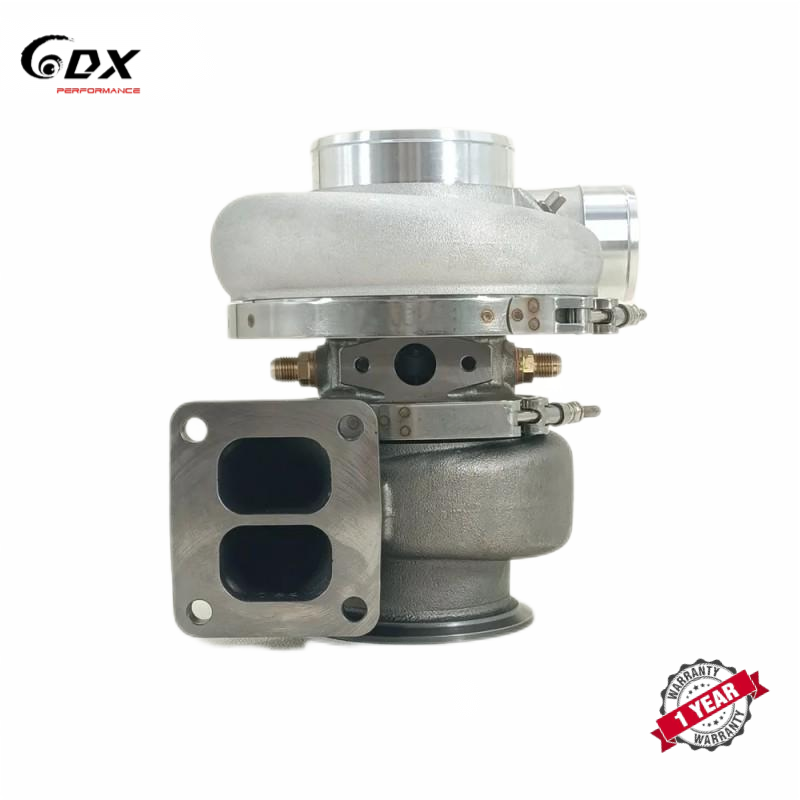

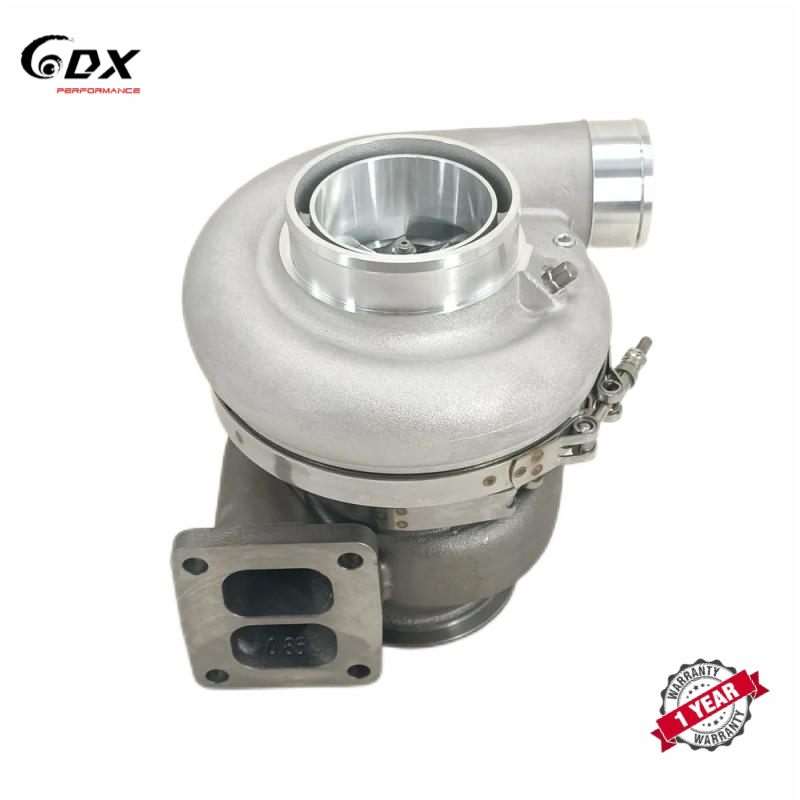

G-Series G40-900 Turbo 62mm Turbine Housing A/R 0.85 Standard Rotation 860777-5003S

Horsepower: 500 - 900 Displacement: 2.0L - 6.0L G Series compressor aero increases flow up to 32% (compared to GTX4088R) • 62mm and 71mm compressor inducer sizes • Dual ceramic ball bearing with steel cages • G Series turbine aero increases flow 16% (compared to GTX4088R) • Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min • Lightweight aluminum backplate • Fully machined speed sensor and pressure ports • Water fittings included with super core • Stainless steel turbine housings available with V-Band and T4 twin scroll inlet • T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models G40-900 Part Number: 860777-5003S Turbine Housing A/R 0.85 Compressor wheel 62mm/88mm Turbine wheel 77/70mm Single package size: 45X45X50 cm Single gross weight: 15.000 kg
