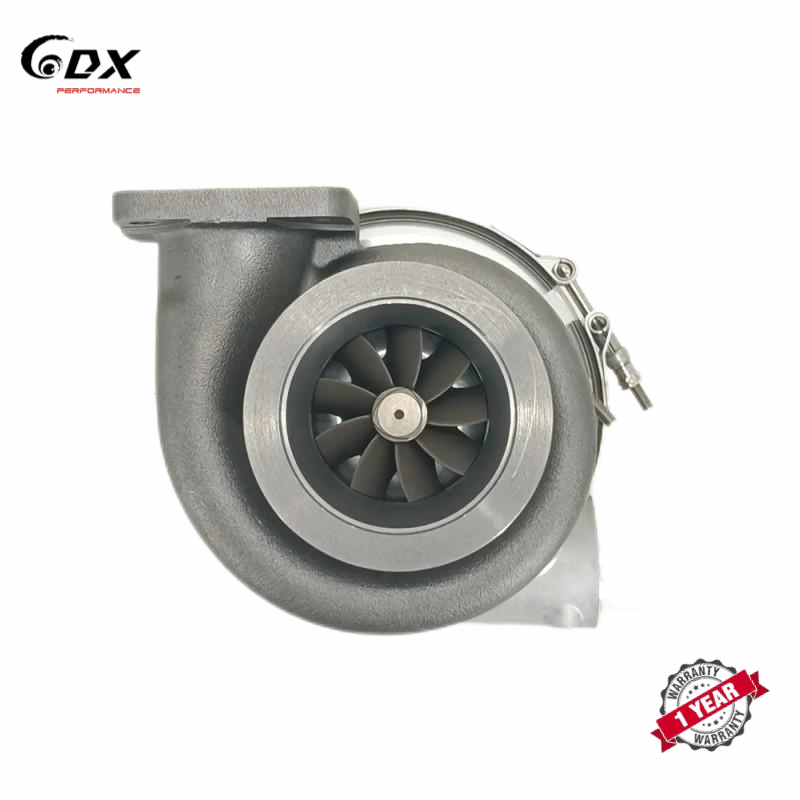

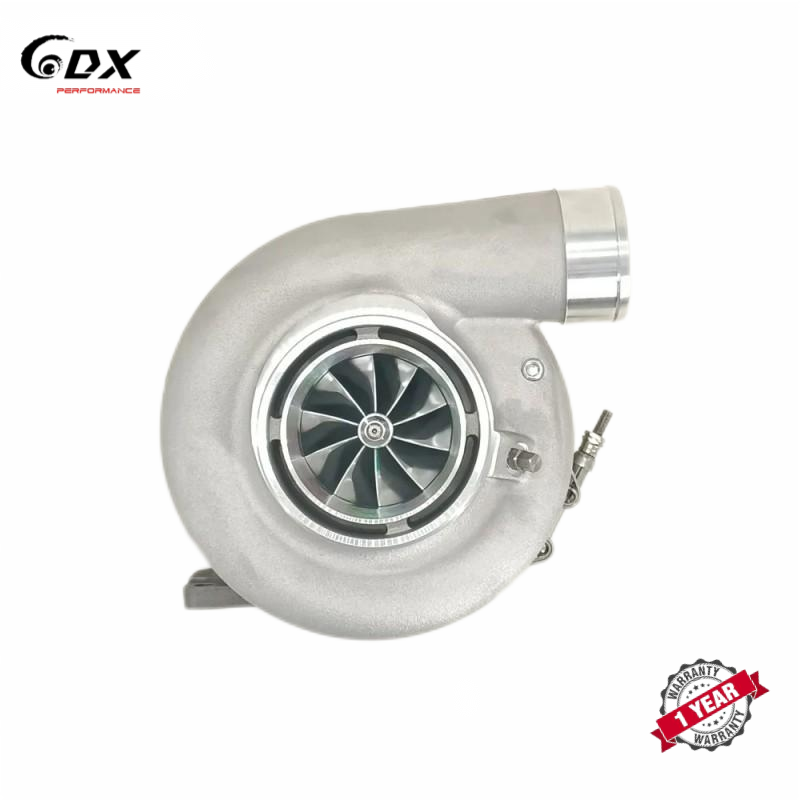

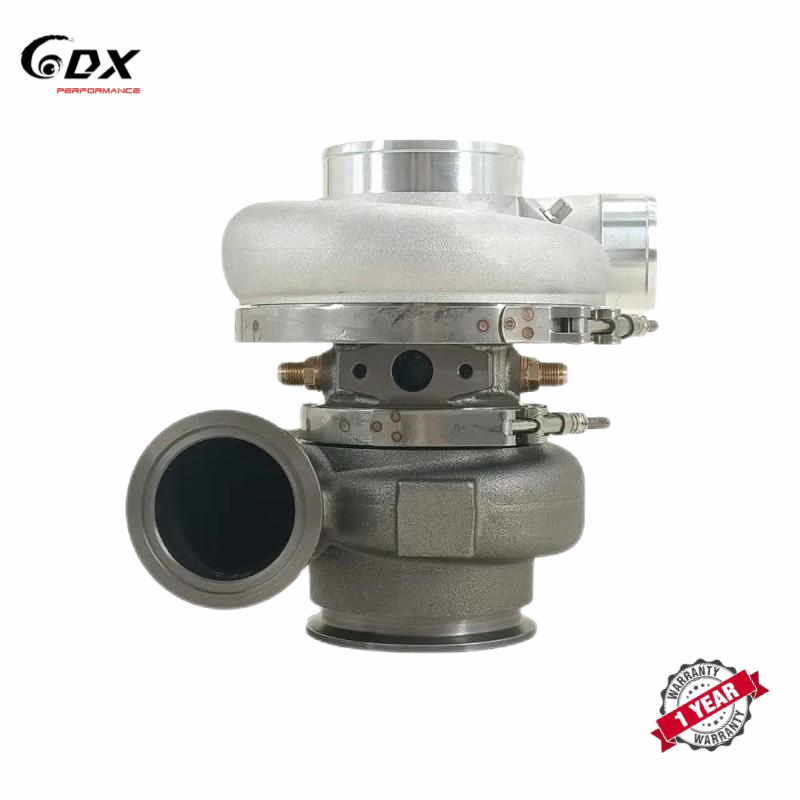

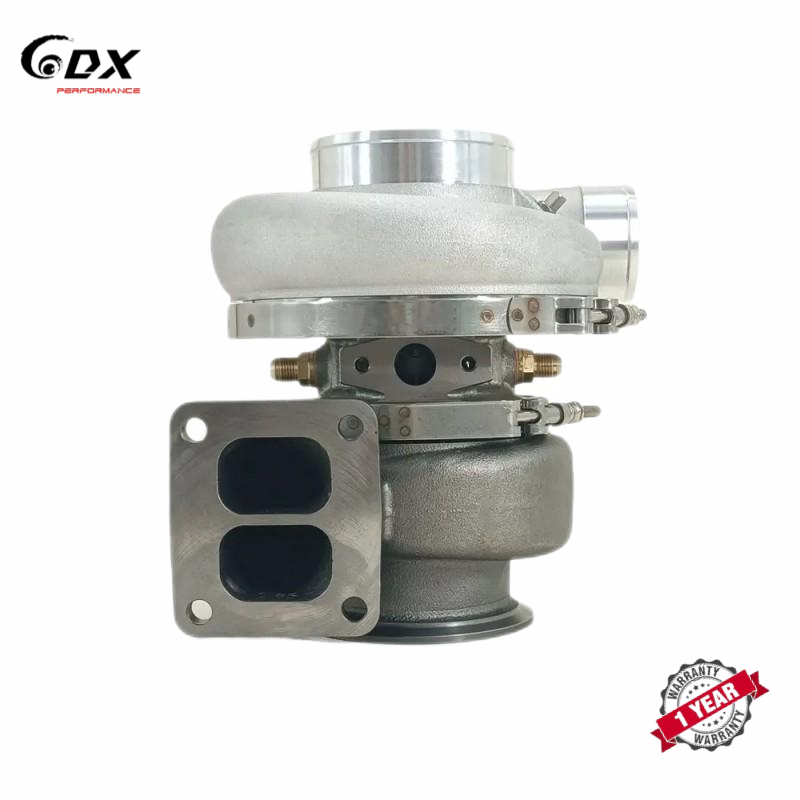

G-SERIES turbo G40-1150 71mm A/R 0.85 Turbocharger T4 Vband 860777-5002S 757707-0032

G40-1150, 757707-0035, 757707-0027, 757707-0028, 757707-0029, 757707-0030, 757707-0032, 757707-0033, 757707-0034, 860777-5002S G40-1150 A/R 0.85 Horsepower: 500 - 1150 Displacement: 2.0L - 6.0L Turbine 77/70mm Compressor wheel 71/88mm • G Series compressor aero increases flow up to 32% (compared to GTX4088R) • 62mm and 71mm compressor inducer sizes • Dual ceramic ball bearing with steel cages • G Series turbine aero increases flow 16% (compared to GTX4088R) • Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min • Lightweight aluminum backplate • Fully machined speed sensor and pressure ports • Water fittings included with super core • Stainless steel turbine housings available with T4 twin scroll inlet and V-band Inlet • T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models Single package size: 30X30X30 cm Single gross weight: 15.000 kg Outlet T4 / V-band
